FatBack

Name: FatBack
Brand: Volt Bikes
Price: 2139 USD
Availability: InStock

Price range: $2,139.00 through $2,149.00

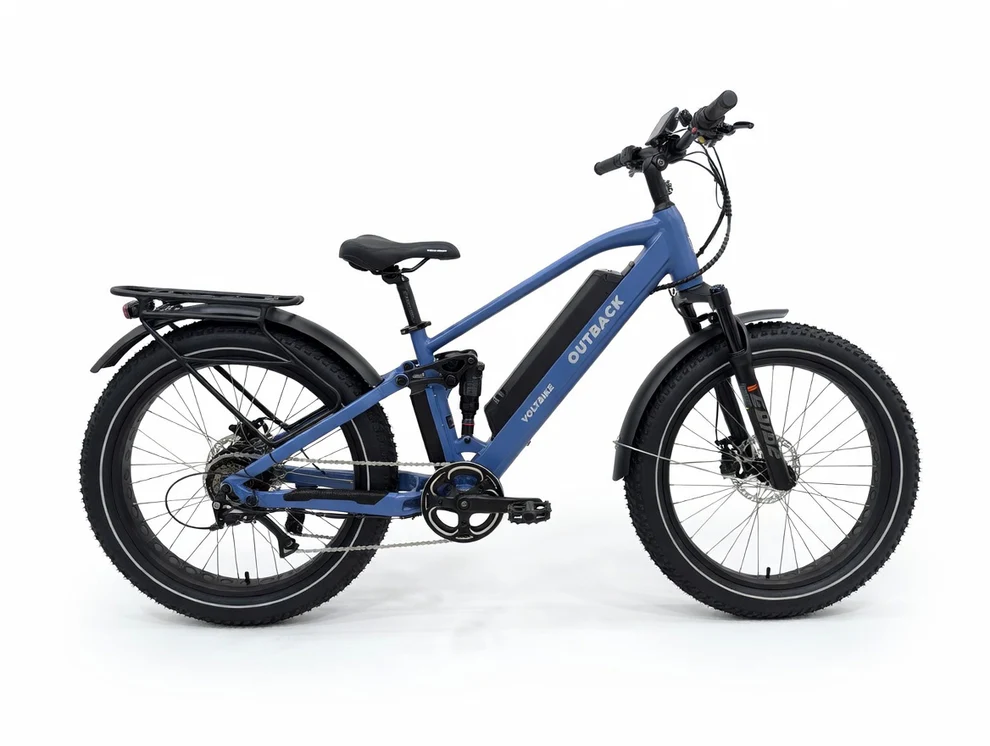

The FatBack is the Outback reimagined with fat tires. It features the same trail-and-city versatility, full-suspension frame, and RockShox rear air shock—but equipped with 26″ x 4.0 fat tires for enhanced stability and winter readiness.

*The FatBack’s frame displays “Outback” branding as standard.

Powered by a Bafang 500w (750w peak) motor and 48v 19.6Ah Li-ion battery (upgradeable to 25Ah), it delivers the range and performance you need. Available in Large (18.5″ frame) and smaller (16.5″ frame) sizes for riders 5’3″ and up. The wider rims accommodate fat tires while making winter tire options more accessible.

* Contact us if you’d like to have Winter tires, Whitewall, or Street Tread tires installed.

Color

BATTERY

Clear

SKU: N/A Categories: Outback, Volt Bikes Brand: Volt Bikes

Overview

750W Peak Power

BAFANG is the world’s biggest manufacturer of hub motors for e-bikes. VoltBike Outback is using Bafang G06 series geared motor which provides 80 N.m. max torque and up to 750w of peak power. The Bafang G06 series is remarkable for its high efficiency and power thanks to the integrated nylon planetary gears.

Samsung Battery

VoltBike Outback is using 48v 19.6Ah (9500Wh) battery pack with Samsung INR18650-35E cells. The battery pack holds UL 2271 safety certification. Assembled by Phylion which is one of the largest battery manufacturers for ebike batteries with facilities in China, Europe and India. Samsung SDI’s Li-ion battery cells are preferred by high-end e-bike makers and companies that lead the e-bike market.

RockShox Rear Air Shock

The RockShox Monarch R is a wolf in sheep’s clothing. Its lightweight design not only delivers silky smooth travel, but thanks to the DebonAir air spring, it also delivers a spring rate you’d generally only get from a much heavier coil shock. Fully adjustable shock capable of smoothing out the most aggressive trails, while simultaneously saving you weight for epic cross-country riding.

Full Suspension

Get increased stability in the bumps and while descending.VoltBike Outback is a smart choice for all types of riding including trails or in the city. Get better traction, control, and steering, minimizing the risk of mistakes on tough terrain.

Hydraulic Stopping Power

Voltbike Outback using Tektro Auriga hydraulic front and rear disc brakes with 180mm rotors. Tektro Auriga comp disc brakes features an open system design using non-corrosive and environment-friendly mineral oil. Features dual piston design, melt forged caliper body with automatic positioning via front or rear adapters.

Backlit Color Display

The 3.5-inch display, conveniently positioned at the center of the handlebar, provides real-time information, including speed, pedal assist level, battery capacity, distance traveled, and current load. Additionally, you can charge your cell phone using the built-in USB connector. An innovative feature of the display is the lighting sensor, which automatically activates your lights when it detects darkness.

Adjust Your Ride

Adjust your bike as per your need. No matter what your style of riding, VoltBike has a stem with the fit, performance and style you’re looking. VoltBike is using stem Promax MA-570 with adjustable angle 35° – 145° and 108mm extension.

Simple Controls

Our redesigned cockpit includes large easy to read color LCD screen which shows all the important information like speed, battery level and current load. Get instant power with the integrated half-twist throttle with and on/off button which helps prevent accidental activation.

Parts Included

Our bikes ship 95% assembled with everything you’ll need to get up and running, including:

Specifications

Weight 75.0 lb
Battery 48V 19.6Ah Li-ion Samsung (950Wh) Samsung Cells. UL 2271 certified. Assembled by Phylion.
Battery Style Clip-on
Bottom Bracket Neco 910, 23.5mm + 120mm + 23.5mm
Brakes Hydraulic disc brakes front/rear Tektro Auriga HD-E500
Brake Lever Tektro Auriga with safety power cut
Chain KMC Rust Buster
Crankset Aluminum Alloy-6061 44T Crank, 170mm with Outer Guard
Derailleur Guard Rear Metal Derailleur Guard
Fork RST Guide aluminum alloy suspension with lockout function.
Frame Type Step-Over
Freewheel Cassette Sunrace M2 Freewheel Super-Low 7 Speed 13-34T
Front Light Spanninga Kendo+ LED 30 Lux. Powered by the main battery and controlled from the keypad.
Handlebars PROMAX ALLUMINUM ALLOY 31.8mm*22.2mm*680mm, 9 degree
Hubset Alloy 6061 Electric Motor
Motor 48v 500W (750W Peak) Bafang G06 Hub Motor
Motor Type Hub Motor
Pedals Wellgo LU-313 with reflectors
Rear Derailleur Shimano Acera RD-410 7 speed direct rear derailler
Rear Suspension Air Shock RockShox Monarch R. Highly tunable DebonAir™ with rebound adjustment
Rider Max Weight {“value”:280.0,”unit”:”lb”}
Rims 27.5 inch with 36 spokes
Seat Velo Plush VL-6142
Seat Post Promax SP-252 Aluminum 6061 Alloy, 31.6mm*350mm
Shifter Type Shimano Tourney TX50R6CT Thumb Shifter Plus 7-Speed
Spokes Rear 13G, Front 13G
Stem PROMAX Fixed Stem
Tires Kenda Havok 26×3″(Medium) or 27.5 x 3″(Large), Wire Bead, 30 TPI casing, Weight is 1285 g. Tread 2mm in the center.
