Mariner

Name: Mariner
Brand: Volt Bikes
Price: 1439 USD
Availability: InStock

Price range: $1,439.00 through $1,649.00

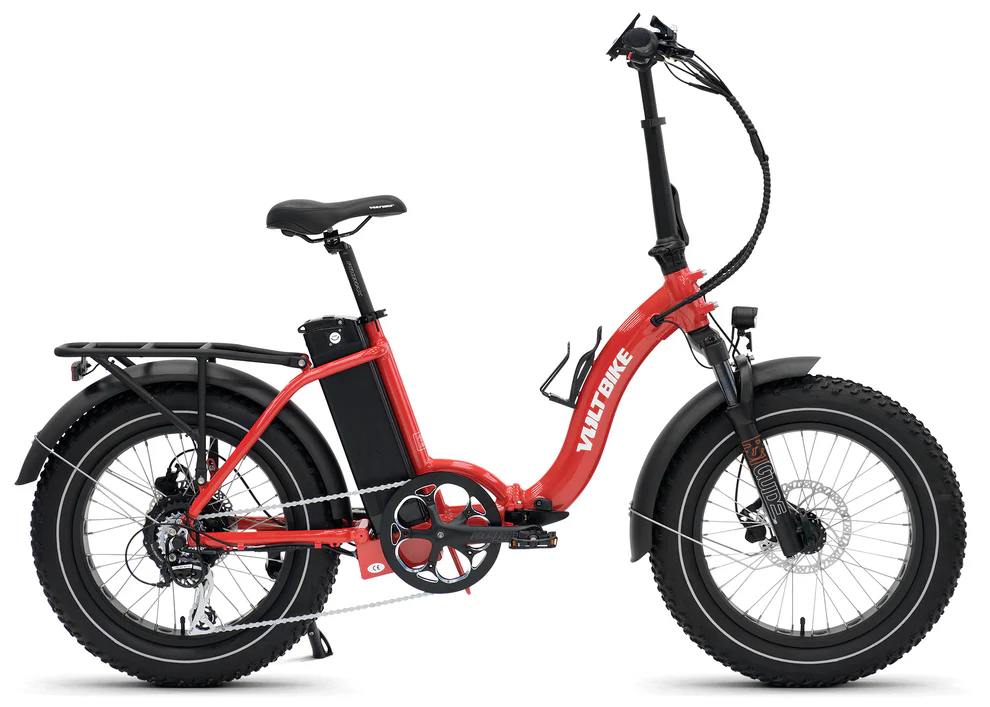

Experience a seamless and enjoyable ride with the Mariner. Designed with a convenient step-through frame and a sleek, foldable design, this bike offers effortless maneuverability. This bike is propelled by a powerful 500w (750W peak) motor.

The latest version features a powerful 20Ah (960Wh) Samsung Li-ion battery, upgraded color LCD screen and comes equipped with metal fenders and a sturdy rear rack. All the fun of the Yukon 750 but in a smaller, foldable frame.

Color

BATTERY

Clear

SKU: N/A Categories: Mariner, Volt Bikes Brand: Volt Bikes

Overview

500W Pure Power

BAFANG is the world’s biggest manufacturer of hub motors for e-bikes. VoltBike Mariner V2 is using Bafang G06 series geared motor which provides 80 N.m. max torque and up to 750w of peak power. The Bafang G06 series is remarkable for its high efficiency and power thanks to the integrated nylon planetary gears.

Fully Integrated Battery

Mariner V2 is using 48v 14Ah battery pack with Samsung NCR18650B cells. The battery pack has been tested by the UL 2271 safety standards. Samsung SDI’s superb cell balance technology contributes to the uniform quality of the packs and driving units. Samsung SDI’s Li-ion battery cells are preferred by high-end e-bike makers and companies that lead the e-bike market.

Extra Smooth Ride

Mariner V2 comes standard with lockout suspension Mozo FatMan-20 which can handle up to 5.2 inches wide tire. Designed for quick release axles and bolt on axles. 135mm dropout, 32mm stanchions, 210mm steerer tube, 90mm travel. Weight is only 7lbs.

Sturdy Rear Rack and Mudguards

Mariner V2 comes standard with rigid metal fenders which can sustain the highest abuse on the trail. Also comes with rear rack which features extra wide tubing so you can carry more load compared to our rivals. Mounted directly on the rack is LED rear taillight with brake light functionality.

Puncture Resistant Fat Tire

Fat tire bikes provide improved grip and traction on the most troublesome terrain by adding extra contact surface. Voltbike Mariner V2 comes with puncture resistant tires Kenda Juggernaut K-Shield. Reflective liners are adding extra visibility at night.

Hydraulic Stopping Power

Voltbike Mariner V2 is equipped with Tektro Auriga hydraulic front and rear disc brakes with 180mm rotors. Tektro Auriga comp disc brakes features an open system design using non-corrosive and environment-friendly mineral oil. Features dual piston design, melt forged caliper body with automatic positioning via front or rear adapters.

Always Visible

Mariner is equipped with a high lumen front LED light with a consistent, well-focused beam pattern. Rear LED light powered using the main battery pack. Features brake light functionality that is activated any time the brakes are applied. Reflective tire liner ensures you are visible from the side.

Simple Controls

Our redesigned cockpit includes large easy to read color LCD screen which shows all the important information like speed, battery level and current load. Get instant power with the integrated half-twist throttle with and on/off button which helps prevent accidental activation.

Easy to Fold

Mariner V2 can be easily folded to fit anywhere and also saves space at home wherever you choose to store it! When folded it measures at only 45″x26″x19″ (length x height x width).

Extremely Customizable

Customize your Mariner with over 20 VoltBike certified accessories. Choose a top tube bag to carry your cell phone or pannier bag to carry bigger cargo. Add front rack on your bike to carry even more load.

Parts Included

Our bikes ship 95% assembled with everything you’ll need to get up and running, including:

Specifications

Weight 68.0 lb
Battery 48V 20Ah (960Wh) Samsung Li-ion
Battery Style Slide-on
Bottom Bracket Neco 910, 23.5mm + 120mm + 23.5mm
Brakes Hydraulic disc brakes front/rear Tektro Auriga HD-E500
Brake Lever Wuxing 108PDD+BS108 with safety power cut
Chain KMC Rust Buster
Crankset Aluminum Alloy-6061 52T Crank, 165mm with Outer Guard
Derailleur Guard Rear Metal Derailleur Guard
Fork Mozo Fatman-20 with 80-120mm travel
Frame Type Step-Through
Freewheel Cassette Sunrace M2 Freewheel Super-Low 7 Speed 13-34T
Hubset Alloy 6061 Electric Motor
Motor 48v 500W Hub Motor Bafang
Motor Type Hub Motor
Pedals Wellgo F-265T Folding Pedals
Rear Derailleur Shimano Acera RD-410 7 speed direct rear derailler
Rider Max Weight {“value”:280.0,”unit”:”lb”}
Rims 20 inch with 36 spokes
Seat Velo VL-8020E
Seat Post Promax SP-252 Aluminum 6061 Alloy, 27.2mm*350mm
Shifter Type Shimano Tourney TX50R6CT Thumb Shifter Plus 7-Speed
Stem Aluminum Alloy SVMONO SM-A150-8R, diameter 28.6mm, bore: 25.4mm, weight: 520g
Tires Kenda Krusade K1188 20×4, Wire Bead
